Conditions of Sale Mineralogy samples from the Earth's mantle are some of the rarest and most difficult geologic materials for educators, collectors and the scientific community to acquire. The samples listed are offered on a first-come, first serve basis and guaranteed to be exactly as described. All are enclosed and protected in a 2" x 2" acrylic case that may be opened for examination. Master Card, VISA, PayPal accepted. Checks are welcome but please email us first so that we may confirm availability and hold the material until your check arrives. |
Questions on any specimens? lab@petrologyslides.com |
. |
Kimberlite, Great Slave Lake, Canada, in acrylic case | Glassy 2-Pyroxene andesite, Volcan Colima, Mexico in acrylic case | Pyroxenite mantle xenolith, Mt Leura, Australia in acrylic case |
Pyrope "Ant Hill" Garnet |
Pyrope "Ant Hill" Garnet |
Chrome Pyrope Garnet, "Ant Hill garnets", Arizona | Pyrope "Ant Hill" Garnet |
Pyrope garnets, sometimes known as chrome pyrope garnets or "anthill" garnets, have the most intense hues in the garnet world. They are called "chrome" because the coloring agent is chromium, the same element that gives ruby its intense color. The name "anthill" garnet refers to the chrome pyropes found in the U.S. in AZ, NM and UT primarily, where Native Americans located deposits by inspecting anthills to see if any garnets had been brought to the surface as the ants tunnel, moving the small garnets out of the way and up to the surface. Garnets from this region are typically around 0.7 to 1.2ct. The ants simply move around and bypass any larger ones. Ant hill garnets occur in a
remote section of the Navajo Nation in Arizona. The gems have never been mined
commercially because there aren't enough of them. |
|
Specimen# 81-181 | |
Cr diopside |
Cr diopside |

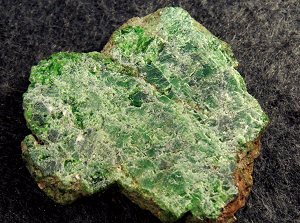

Cr-diopside, Alkaline Batbjerg complex, western Kangerdlugssuaq Fjord, east Greenland | Cr diopside |
Cr diopside is an important
mineral in the Earth's mantle. It is a common constituent of peridotite
xenoliths and is an indicator mineral for mafic -ultramafic rocks, kimberlite
pipes and potentially, diamond-bearing kimberlites. Specimens of Cr diopside
are an attractive green. The addition of chromium to diopside gives it a rich
green color. Higher grades, or gem quality Cr diopside - inclusion free, can be
faceted into jewelry. |
|
Specimen# 82-374 | |

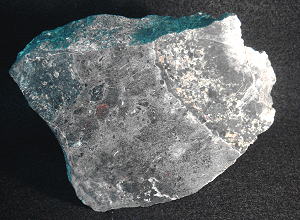

Point Lake kimberlite |
Point Lake kimberlite |
Point Lake kimberlite, Lac de Gras region, Yellowknife, NWT, Canada | Point Lake kimberlite |
The first volcanic pipe found in
the Lac de Gras region was the Point Lake kimberlite. The finders, two
geologists, had found kimberlite indicator minerals in the area as early as
1985. Its discovery precipitated one of largest staking rushes in recent mining
history, covering most of the area between Yellowknife and the Arctic coast.
The Point Lake kimberlite pipe is one of 156 pipes known to be in the Lac de
Gras region. |
|
Specimen# 83-356 | |
Retrograde Eclogite |
Retrograde Eclogite |
Retrograde Eclogite, Southern Valais Craton, SW Switzerland. | Retrograde Eclogite |
Eclogites form at mantle depths by burial metamorphism of oceanic crustal rocks. They are high grade, garnet-omphacite metamorphic rocks. An uplift and decompression of eclogites back to the surface often results in retrograde metamorphism. This results in the formation of new minerals and sometimes, reaction rims around the garnets. The original green omphacite pyroxene is often altered into a dull grey/bluish glaucophane along with muscovite.
|
|
Specimen# 84-273 | |

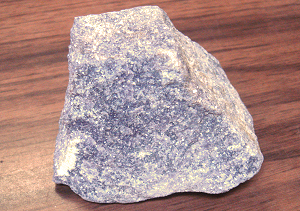

Rubidian Lepidolite |
Rubidian Lepidolite, Kaiserstuhl volcanics, Rhine Graben, Germany | Rubidian Lepidolite |
This is a porphyritic
carbonatite dyke rock from the Kaiserstuhl, the largest volcanic center in the
Rhine Graben. There's a lot of great mineralogy in this one. Phonolites and
extrusive carbonatites are present along with Mn-rich olivine, pyrochlore,
Nb-rich perovskite, baddelyite, and the rare minerals zirconolite and
calzirtite as Nb-rich varities with REE! |
|
Specimen# 85-216 |
|
Man Craton kimberlite |
Man Craton kimberlite |
Kimberlite, Man Craton, Guinea, West Africa | Man Craton kimberlite |
The Man craton in West Africa is
an Archaean craton formerly joined to the Guyana craton (South America) that
was rifted apart in the Mesozoic. Kimberlites of the Man craton include three
Jurassic-aged clusters in Guinea. Most of the Man craton kimberlites are
mineralogically classified as phlogopite kimberlites. |
|
Specimen# 86-74 | |

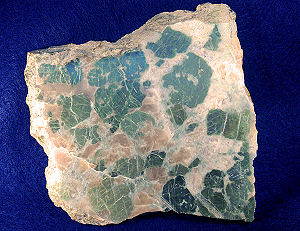

Ophiolite gabbro, Iceland |
Ophiolite gabbro, Iceland |
Ophiolite gabbro, Iceland |
Ophiolite gabbro, Iceland |
Ophiolites are segments of ocean crust and mantle tectonically exposed on land by obduction (overthrust), usually when an ocean basin closes. An ophiolite sequence consists of variably altered oceanic rocks, including marine sediments, ocean crust, and a part of the mantle. The name ophiolite means
"snakestone" from "ophio"(snake) and "lithos"
(stone) in Greek. The rock sequence is named for the brilliant green,
snake-like serpentine minerals which form in altered ocean crust and mantle.
Ophiolites are rare. . |
|
Specimen# 87-112 | |

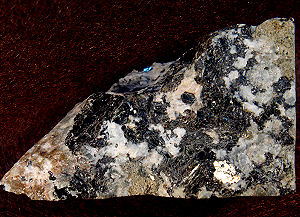

.Ijolite, Magnet Cove, Arkansas |
.Ijolite, Magnet Cove, Arkansas |
Ijolite, Magnet Cove, Arkansas | Ijolite, Magnet Cove, Arkansas |
Magnet Cove is a 100-million-year old igneous intrusion of some rare and unusual rock types including Ijolites- all derived from a melt that was originally a CO2-rich basaltic liquid in the earth's upper mantle. The Ijolite's of Magnet Cove are intrusive rocks that formed through the cooling and solidification of this basaltic liquid. They may form with or without crystallization, either intrusively below the surface, or on the surface as extrusive rocks. Ijolites are composed of
nepheline and an alkali pyroxene, usually aegirine-augite and are the plutonic
equivalent of the volcanic nephelinites. Accessory minerals include garnet,
titanite, perovskite, apatite, and calcite. |
|
Specimen# 88-121 | |
Kimberlite in thin section |
.Kimberlite, macrocrystal |

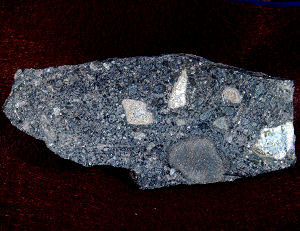

Kimberlite, macrocrystal, DeBeer's Kimberley Mine, South Africa | .Kimberlite, macrocrystal |
The DeBeer's mines in Kimberley,
South Africa have produced and astounding variety of diamonds and kimberlite
rocks including these macrocrystal specimens. All of these kimberlites were
diamond bearing. |
|
Specimen# 89-110 | |

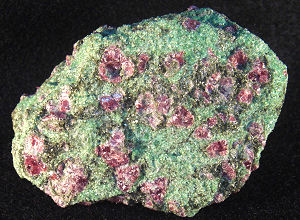

Eclogite , Bergan Arcs, Norway |
Eclogite, Bergen Arcs, Norway | Eclogite, Bergen Arcs, Norway |
The Bergen Arcs, Norway is a folded stack of Proterozoic and Lower Paleozoic rock units defining a large fold structure that is clearly visible from topographic maps, geologic maps and satellite images. The rocks, strongly influenced by Caledonian deformation and metamorphism, generally show a pronounced foliation or metamorphic layering. The classic area for Bergen
Arcs eclogites is the northern part of Holsnøy, Meland, an island N of
Bergen. They are striking in appearance with green omphacite and red-brown
garnet. . |
|
Specimen# 90-115 | |
Basalt, Hakone Volcano |
Basalt, Hakone Volcano, Japan. | Basalt, Hakone Volcano |
The Hakone volcano is located 80 km SW of Tokyo. It is a massive stratovolcano truncated by 2 overlapping calderas, The calderas were formed as a result of 2 major explosive eruptions about 180,000 and 49,000 years ago. Dome growth after the caldera formation occurred progressively to the south. The latest magmatic eruption from Hakone was 2900 years ago produceding a pyroclastic flow and a lava dome in the explosion crater. The basaltic rocks from the
Hakone volcano are mixtures of basic andesite magma and fragments of gabbroic
rock. Most of the minerals of phenocrystic size and glomeroporphyritic crystal
aggregates in the basaltic rocks, are xenocrysts that were derived from a
gabbroic body lying beneath the volcano. |
|
Specimen # 91-140 | |

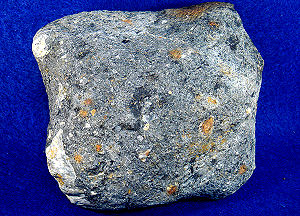

Udachnaya pipe kimberlite |
Udachnaya pipe kimberlite |
Kimberlite, Udachnaya pipe, Russia | Udachnaya pipe kimberlite |
The Udachnaya Pipe is the largest diamond deposit located in the Daldyn-Alakit kimberlite field in Sakha Republic, of Russia. It is an open pit mine. It is located just outside the Arctic circle. It is more than 600m deep and the third deepest open pit mine in the world. This is a calcite-rich
hypabyssal kimberlite with clasts of olivine, diopside and phlogopite. |
|
Specimen# 92-156 | |

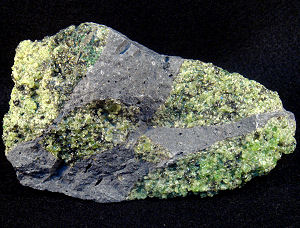

Olivine in basalt |
Olivine in basalt |
Olivine in basalt, Arizona | Olivine in basalt |
From the San Carlos Indian
Reservation¸ Gila County¸ Arizona, these are olivine in basalt
xenoliths, which are thought to be pieces of the upper mantle delivered to
Earth's surface in the magmas of deep-source volcanoes. There is an abundance
of gemmy olivine in each specimen. . |
|
Specimen# 93-160 | |
Banded Iron Formation |
Banded Iron Formation |

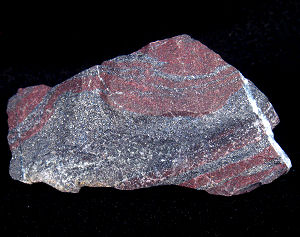

Banded Iron Formation, Pilbara region, Western Australia | Banded Iron Formation |
Banded iron formations (BIF) are distinctive geological units of sedimentary rock that are almost always of Precambrian age. A typical BIF consists of repeated, thin layers (a few millimeters to a few centimeters in thickness) of silver to black iron oxides, either magnetite (Fe3O4) or hematite (Fe2O3), alternating with bands of iron-poor shales and cherts, often red in color, of similar thickness, and containing microbands (sub-millimeter) of iron oxides. Some of the oldest known rock
formations, formed over 3.7 billion years ago, include banded iron layers.
Banded layers rich in iron were mostly deposited between 2.4 and 1.9 billion
years ago. Banded iron formations are an important commercial source of iron
ore such as the Pilbara region of Western Australia |
|
Specimen# 94-171 | |
Jack Hills Zircon in thin section |

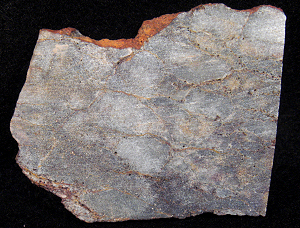

Zircon, Jack Hills, Australia | Jack Hills Zircon in matrix |
The Jack Hills are located in the Narryer Gneiss Terrane of the Yilgarn Craton, Western Australia. Detrital zircons with ages greater than 4 billion years old have been found in rocks from this Terrane. This is the oldest dated
material originating on Earth; the date is in the Cryptic era of the Hadean
eon. They were found within a unit of the supracrustal sequence, a
metamorphosed conglomerate considered to have an age ~3.0 Ga. Given the
detrital nature of the rock unit, the zircons are sourced from pre-existing
rocks which were then weathered and the resultant sediment deposited as
sedimentary rock. |
|
Specimen# 95-189 | |
Chromite |

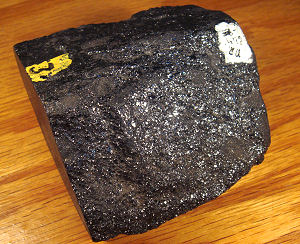

Chromite, Shulukwi mine, Selukwe, Zimbabwe (Southern Rhodesia) | |
Chromite occurs in basic and ultrabasic igneous rocks and in metamorphic and sedimentary rocks that are produced when chromite-bearing rocks are altered by heat or weathering. It is an oxide mineral composed of chromium, iron and oxygen. It's dark gray to black in color with a metallic to submetallic luster and a high specific gravity similar to magnetite. Chromite is important because it
is the only economic ore of chromium, an essential element for a wide variety
of metal, chemical and manufactured products. Trace amounts of chromium produce
the color in many minerals and gemstones. The red color of ruby, the pink of
some sapphires and the green color of emerald are caused by tiny amounts of
chromium. |
|
Specimen# 96-182 | |

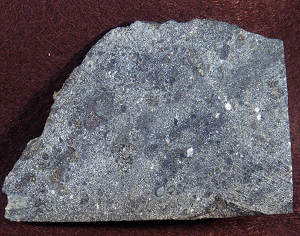

Lamprophyre, West Greenland |
Lamprophyre, West Greenland | Lamprophyre, West Greenland |
West Greenland has been the site of some excellent mantle-related geology. Kimberlites, lamproites, and ultramafic lamprophyres have all been reported. Ultramafic lamprophyres are
rare, they mineralogically resemble kimberlites and their classification is
highly ambiguous. Still however, lamprophyres are defined as a group of rocks
which are strongly porphyritic in mafic minerals, typically biotite, amphiboles
and pyroxenes, with any feldspar being confined to the groundmass. |
|
Specimen# 97-187 | |
Cratrer of Diamonds Mine Kimberlite |

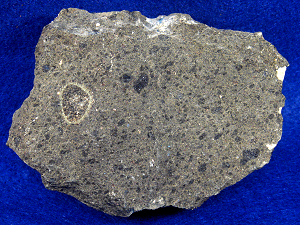

Kimberlite, Crater of Diamonds Mine, Murfreesbore, Arkansas | Cratrer of Diamonds Mine Kimberlite |
Sometime around 100 million
years ago a deep-source volcanic eruption occurred in what is now Arkansas.
Rising magma, rich in gases, expanded thousands of times in volume from the
tremendous pressures at mantle depth. The expanding gas, carrying xenoliths of
mantle-rich geology, exploded at the Earth's surface covering the surrounding
area. These xenoliths were fragments of mantle rock - kimberlites, lamproites,
alnoites with some of the kimberlites containing diamonds. |
|
Specimen# 98-193 | |
Eclogite,Lahtojoki kimberlite pipe, Finland |

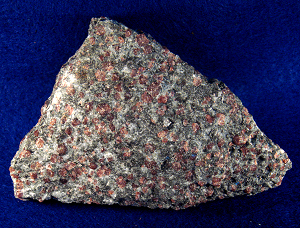

Eclogite, Karelian craton, Finland | Eclogite, Lahtojoki kimberlite pipe, Finland |
Eclogites constitute a minor
portion of the mantle-derived xenoliths in the eastern Finland kimberlites.
They have been derived from the depth interval of 150-230 km where they are
inferred to occur as thin layers or small lenses of coarse-grained garnet
peridotites. Their chemical and isotopic composition suggest that they
represent Proterozoic mantle-derived melts or cumulates rather than subducted
oceanic lithosphere. |
|
Specimen# 99-200 | |
